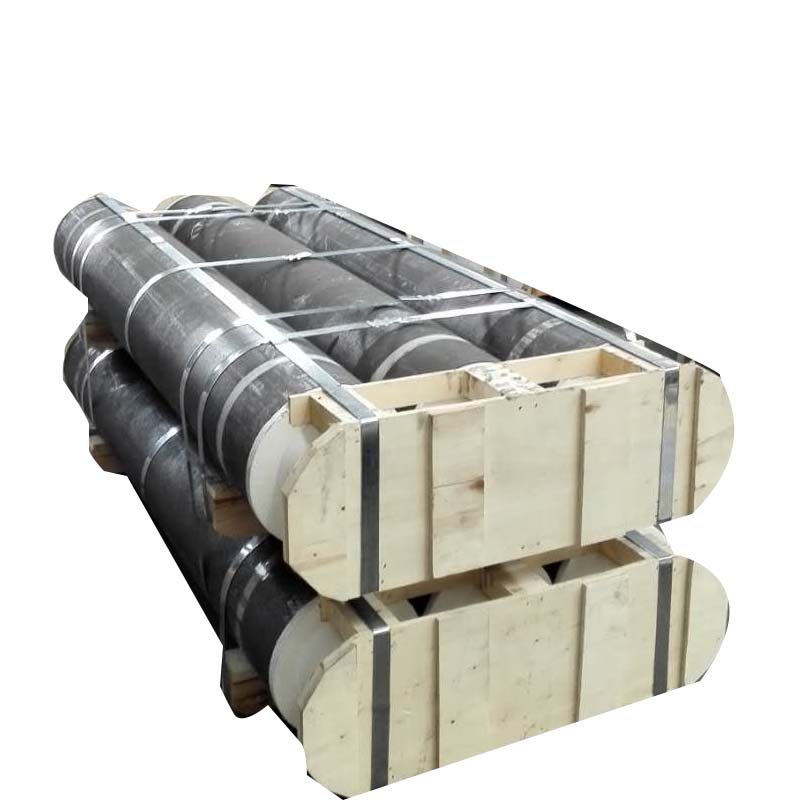

Graphite electrode classification: ordinary power graphite electrode (RP); high power graphite electrode (HP); quasi ultra high power graphite electrode (SHP); ultra high power graphite electrode (UHP).
(1) Used in electric arc steel making furnace
Graphite electrode materials are mainly used in electric furnace steelmaking. Electric furnace steelmaking utilizes the research graphite electrode to introduce working current into the furnace. A strong current can affect the arc discharge through these gas environments at the lower end of the electrode, and use the heat generated by the arc to smelt. The size of the capacitance, equipped with graphite electrodes with different diameters, can be used continuously, abutting the connection between the electrode joint electrodes. Graphite for steelmaking as electrode material accounts for about 70 to 80% of the total amount of graphite electrodes in China.
(2) Used in mine thermal electric furnace
Used for the production of iron furnace iron alloys, pure silicon, yellow phosphorus, calcium carbide and matte copper, which is characterized in that the lower part of the conductive electrode is buried in the charge, so in addition to the heat generated by the electric arc between the electric plate and the charge, the current passes through the charge The resistance of the charge also generates heat.
(3) Used in resistance furnace
During the production process, graphitization furnaces for graphite materials, melting furnaces for technical glass melting and production, and electric furnaces for silicon carbide are all resistance furnaces. The management of the materials contained in the furnace is both a heating resistor and a heated object.
(4) A large number of graphite electrode blanks are also used for processing into various shaped products such as various crucibles, graphite boats, hot die casting molds and heating elements for vacuum electric furnaces.
It should also be noted that among the three high-temperature composite materials including graphite electrodes, graphite molds and graphite crucibles, three graphite materials at high temperature, graphite is easy to oxidize and burn reaction, thus the carbon layer of plastic material on the surface To improve the porosity of life and loose structure.
